Designing Test Suites
Testing software is an important part of the development life cycle of a software. It is an expensive activity. Hence, appropriate testing methods are necessary for ensuring the reliability of a program. According to the ANSI/IEEE 1059 standard, the definition of testing is the process of analyzing a software item, to detect the differences between existing and required conditions i.e. defects/errors/bugs and to evaluate the features of the software item.
The purpose of testing is to verify and validate a software and to find the defects present in a software. The purpose of finding those problems is to get them fixed.
IEEE 829-1998 is known as the 829 Standard for Software Test Documentation. It is an IEEE standard that specifies the form of a set of documents for use in software testing [i]. There are other different standards discussed below.
Following are the different testing frameworks:
There are many reasons for why we should test software, such as:
A test case describes an input descriptions and an expected output descriptions. Input are of two types: preconditions (circumstances that hold prior to test case execution) and the actual inputs that are identified by some testing methods. The set of test cases is called a test suite. We may have a test suite of all possible test cases.
Testing is done in every stage of software development life cycle, but the testing done at each level of software development is different in nature and has different objectives. There are different types of testing, such as stress testing, volume testing, configuration testing, compatibility testing, recovery testing, maintenance testing, documentation testing, and usability testing. Software testing are mainlyof following types
Unit testing is done at the lowest level. It tests the basic unit of software, that is the smallest testable piece of software. The individual component or unit of a program are tested in unit testing. Unit testing are of two types.
Black box testing: This is also known as functional testing , where the test cases are designed based on input output values only. There are many types of Black Box Testing but following are the prominent ones.
Equivalence class partitioning: In this approach, the domain of input values to a program is divided into a set of equivalence classes. e.g. Consider a software program that computes whether an integer number is even or not that is in the range of 0 to 10. Determine the equivalence class test suite. There are three equivalence classes for this program. - The set of negative integer - The integers in the range 0 to 10 - The integer larger than 10
Boundary value analysis : In this approach, while designing the test cases, the values at boundaries of different equivalence classes are taken into consideration. e.g. In the above given example as in equivalence class partitioning, a boundary values based test suite is { 0, -1, 10, 11 }
White box testing: It is also known as structural testing. In this testing, test cases are designed on the basis of examination of the code.This testing is performed based on the knowledge of how the system is implemented. It includes analyzing data flow, control flow, information flow, coding practices, exception and error handling within the system, to test the intended and unintended software behavior. White box testing can be performed to validate whether code implementation follows intended design, to validate implemented security functionality, and to uncover exploitable vulnerabilities.This testing requires access to the source code. Though white box testing can be performed any time in the life cycle after the code is developed, but it is a good practice to perform white box testing during the unit testing phase.
Integration testing is performed when two or more tested units are combined into a larger structure. The main objective of this testing is to check whether the different modules of a program interface with each other properly or not. This testing is mainly of two types:
In bottom-up approach, each subsystem is tested separately and then the full system is tested. But the top-down integration testing starts with the main routine and one or two subordinate routines in the system. After the top-level ‘skeleton’ has been tested, the immediately subroutines of the ‘skeleton’ are combined with it and tested.
System testing tends to affirm the end-to-end quality of the entire system. System testing is often based on the functional / requirement specification of the system. Non-functional quality attributes, such as reliability, security, and maintainability are also checked. There are three types of system testing
An error correction may introduce new errors. Therefore, after every round of error-fixing, another testing is carried out, i.e. called regression testing. Regression testing does not belong to either unit testing, integration testing, or system testing, instead, it is a separate dimension to these three forms of testing.
The purpose of regression testing is to ensure that bug fixes and new functionality introduced in a software do not adversely affect the unmodified parts of the program [2]. Regression testing is an important activity at both testing and maintenance phases. When a piece of software is modified, it is necessary to ensure that the quality of the software is preserved. To this end, regression testing is to retest the software using the test cases selected from the original test suite.

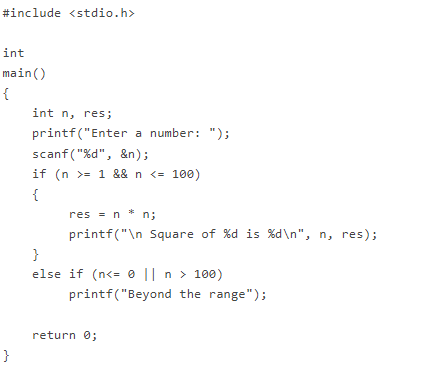

Write a program to calculate the square of a number in the range 1-100
Inputs Outputs
I1 : -2 O1 : Beyond the range
I2 : 0 O2 : Beyond the range
I3 : 1 O3 : Square of 1 is 1
I4 : 100 O4 : Square of 100 is 10000
I5 : 101 O5 : Beyond the range
I6 : 4 O6 : Square of 4 is 16
I7 : 62 O7 : Square of 62 is 3844
T1 : {I1 ,O1}
T2 : {I2 ,O2}
T3 : {I3, O3}
T4 : {I4, O4}
T5 : {I5, O5}
T6 : {I6, O6}
T7 : {I7, O7}
A prevalent misconception among the beginners is that one should be concerned with testing only after coding ends. Testing is, in fact, not a phase towards the end. It is rather a continuous process. The efforts for testing should begin in the form of preparation of test cases after the requirements have been finalized. The Software Requirements Specification (SRS) document captures all features to be expected from the system. The requirements so identified here should serve as a basis towards preparation of the test cases. Test cases should be designed in such a way that all target features could be verified. However, testing a software is not only about proving that it works correctly. Successful testing should also point out the bugs present in the system, if any.
