IMPULSE VOLTAGE GENERATOR
SIMULATOR

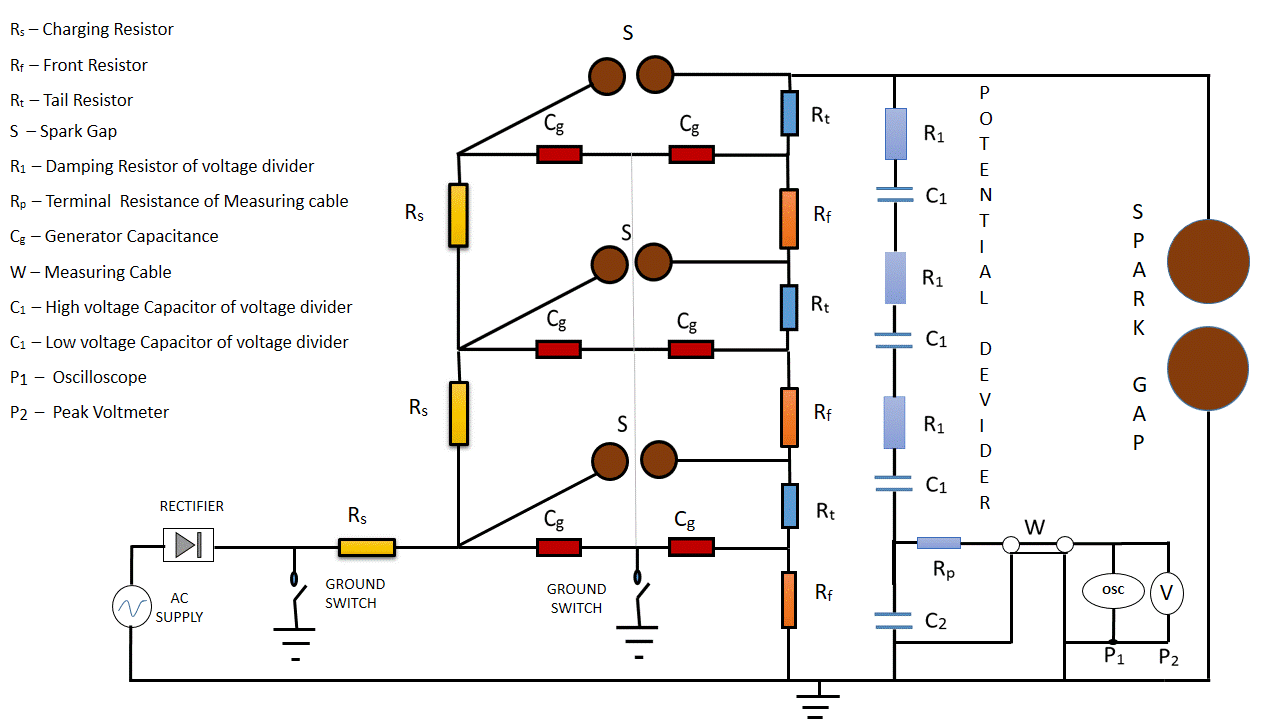

EQUIVALENT CIRCUIT DIAGRAM
INSTRUCTIONS
- Drag your mouse on simulator part to see the impulse voltage generator testing apparatus in details.
You can also zoom in it by scrolling your mouse for detail study of IVG.
- After completing detail study of IVG, set the value of voltage between 2 to 30 kV and sphere gap between 0.1 to 10 cm
- Click on start Experiment
- Then click on open ground switch to give supply to IVG and you can see it in simulator
- The Charge Capacitor button is to be clicked to charge generator capacitors.Charging time of capacitor is displayed by bar on left top corner of simulator
- The Trigger generator button is to be clicked to display the mechanism of IVG and the fact that Breakdown has occurred or not is displayed.
- After complete the process the respective graph will be shown. Different alert statements are included to direct the user whether there are withstand or flashover occurs between sphere gaps.
View the waveform carefully how waveform is changing with variation in parameters. And also different wave forms are generated for withstand and flashover.
- Mouse-hover on wave to see the variation of generated voltage with time. You can drag it or Zoom In/Zoom Out the wave form for detail study.
- Find out Front time and tail time from the wave from.
- Front time = 1.25 times of time time taken by waveform to reach 10% to 90% of peak value.
- Tail time = Time taken by waveform to reach 10% to 50% of peak value while decaying.
- after finding front time and tail time you can compare the generated Impulse wave with standard switching impulse wave.
CHARACTERISTICS
OBSERVATION
