Capacitative Rectification for Half Wave Rectifier

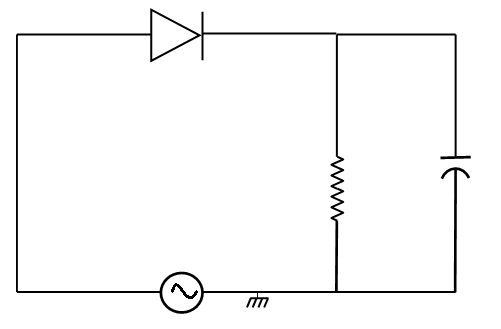

CIRCUIT
INSTRUCTION
Take a diode, and Load resistor of 1KOhms and capacitor of 102μF.
Connect to AC Voltage Source of 50 Hz, 2 V
Click on 'ON' button to make the circuit on.
Click on 'Sine Wave' button to observe the input waveform.
Click on 'Run Simulation' button to observe the filtered waveform.
Observe the corresponding waveform.
Channel 1 shows the input wave, Channel 2 shows the output wave and Dual shows both the input and output wave.
GRAPH PLOT
Print
CONTROLS
V
p
ch1
:
V
Position Y-Axis:
Phase:
Deg
Frequency:
Hz
V
p
ch2
:
V
Position Y-Axis:
Phase:
Deg
Frequency:
CALCULATION
Calculator
Measure the \(V_m\)
\(V_{rms}= \frac{V_m}{√2}\)
\(V_{dc}= \frac{V_m} {π}\)
Ripple Factor=\(\frac{V_{ac}}{V_{dc}}\) \(\quad\)Since, \(V_{ac}=\frac{\sqrt(V^2_{rms}-V^2_{dc})}{V_{dc}}\)
