Verification of Compensation Theorem

Procedure:

Experiment Part Select:

Case 1:

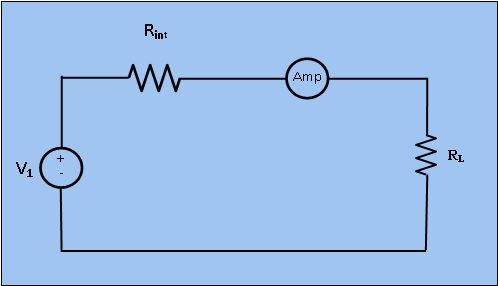

Set the voltage (say V1=100V), internal resistance (say Rint=50ohm) and load resistance (RL). Simulate the circuit and observe the current I.

Case-2:
Change RL by Δ RL. Δ RL can change upto +/- 2% of RL. Simulate the circuit and observe the load current.

Case-3: Simulate the circuit. Observe the varying current (difference between case 1 and case 2) in compensating circuit.


N.B.:- All the resistances are in ohms.

Tutorials Point

Ammeter
[range: 0-5Amp]

Ω

A

  • Circuit analysis to determine Current
      To get the current
      Choose the values of voltage and resistance.
      And then click on Simulate.
      Current (I):

    Amp

    Ω

    V


  • Circuit analysis to determine Current
      To get the current
      change the value of ΔRL.
      And then click on Simulate.
      Total Current:

    Ω

    Ω

    V

    Amp

  • Circuit analysis to determine Varying Current
      To get the Varying Current in compensating circuit
      click on Simulate.
      Compensating Voltage :
      Change_current(ΔI) :
      RL+ΔRL:

    Compensating      voltage

    V

    Ω

    Amp

    V

    Ω


Observation Table:

Serial no. of
Observation		Current(I) from
case 1		Total Current(I) from
case 2		 Current_change
(ΔI)		Total Resistance
(RL+ΔRL)		Compensating voltage
1st
2nd
3rd
4th
5th
