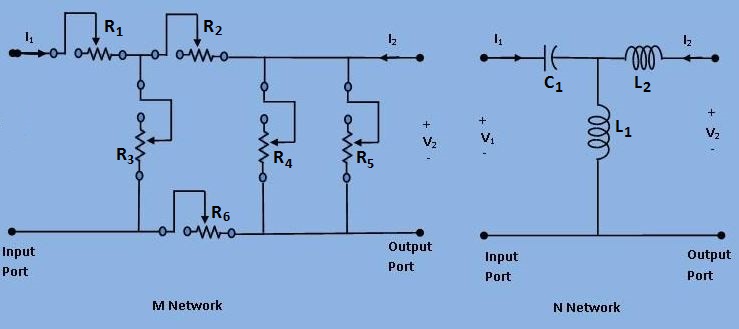

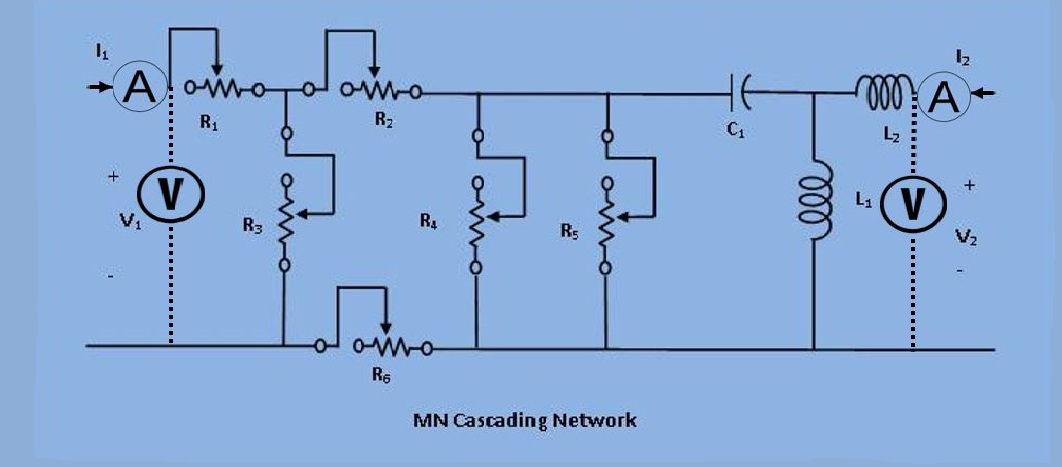

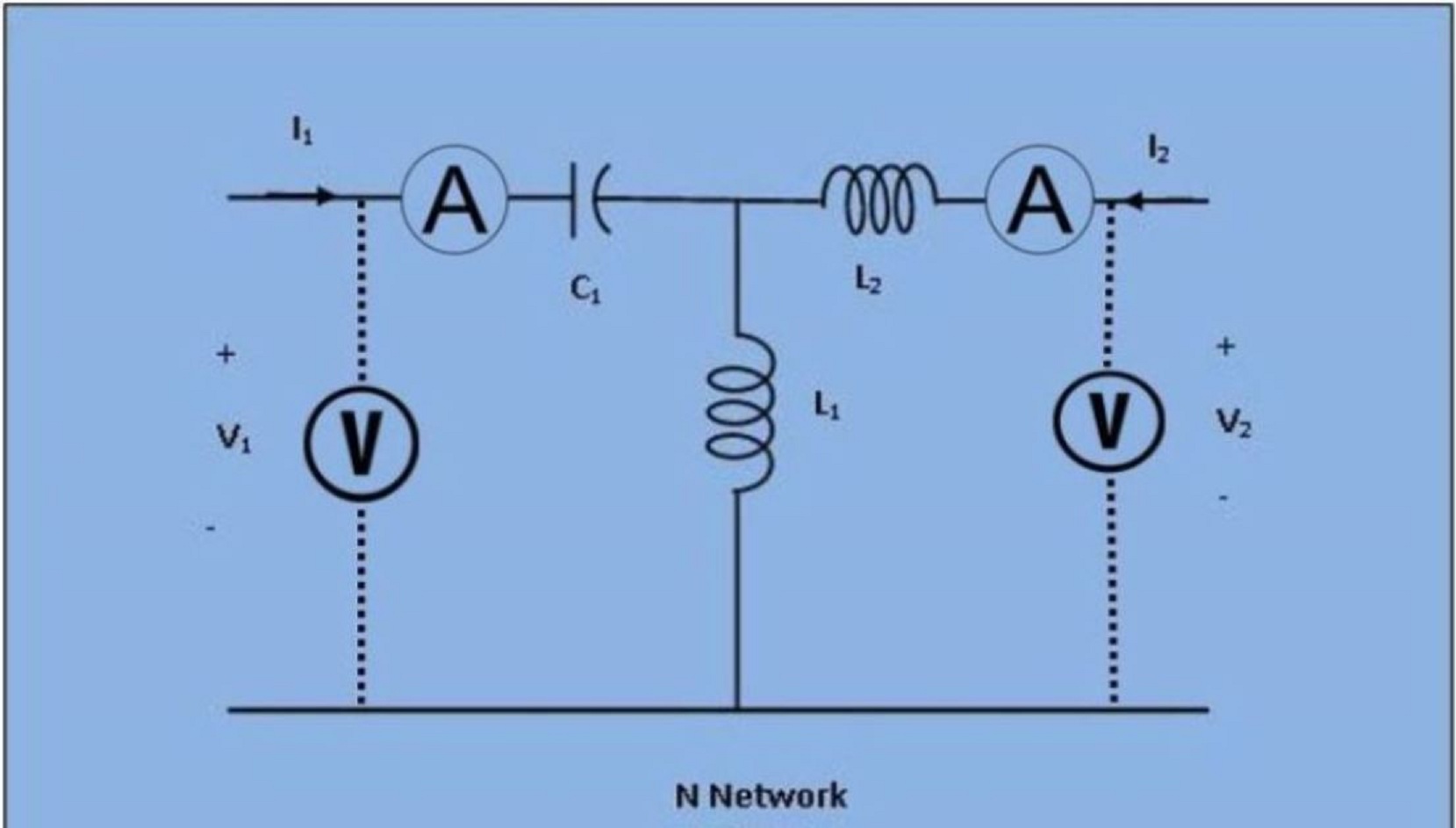

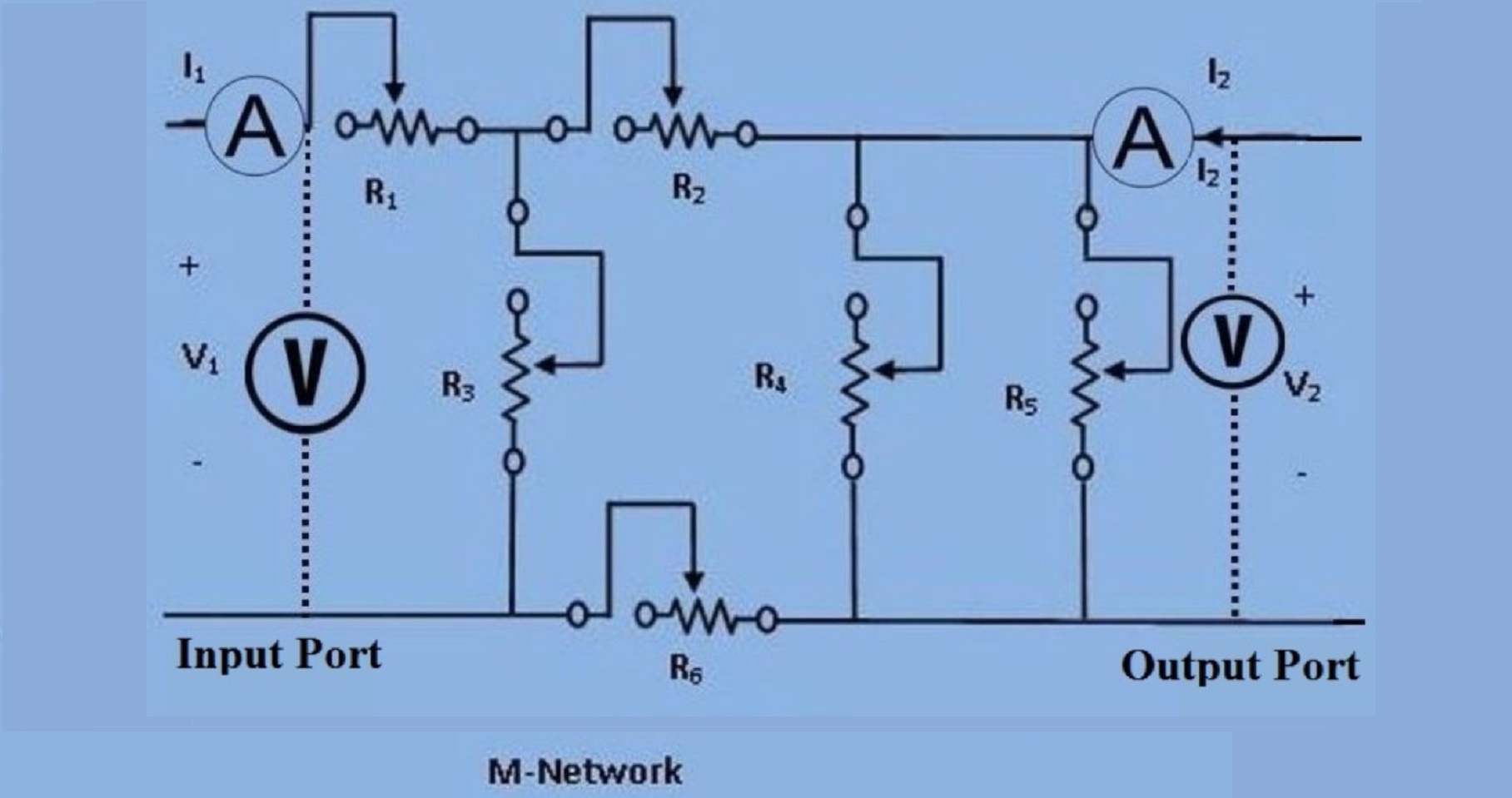

Z parameter
Under 'Controls' choose Case1/Case2.
Case 1: Obtaining the values of Z11 and Z21
i)Apply Power to Input port and set Output port to Intermediate.
ii)Switch on the supply and click on "Simulate" button.
iii)Observe the result Z11=V1/I1 and Z21=V2/I1 when I2=0.
iv)Switch off the supply.
Case 2: Obtaining the values of Z12 and Z22
i) Apply Power to Output port and set Input port to Intermediate
ii)Switch on the supply and click on "Simulate" button
iii)Observe the result Z12=V1/I2 and Z22=V2/I2 when I1=0
iv)Switch off the supply.
Y parameter
Under 'Controls' choose Case1/Case2.
Case 1: Obtaining the values of Y11 and Y21
i)Apply Power to Input port and set Output port to short circuit.
ii)Switch on the supply and click on "Simulate" button.
iii)Observe the result Y11=I1/V1 and Y21=I2/V1 when V2=0.
iv)Switch off the supply.
Case 2: Obtaining the values of Y12 and Y22
i)Apply Power to Output port and set Input port to short circuit .
ii)Switch on the supply and click on "Simulate" button.
iii)Observe the result Y12=I1/V2 and Y22=I2/V2 when V1=0
iv)Switch off the supply.
h parameter
Under 'Controls' choose Case1/Case2.
Case 1: Obtaining the values of h11 and h21
i)Apply Power to Input port and set Output port to short circuit .
ii)Switch on the supply and click on "Simulate" button.
iii)Observe the result h11=V1/I1 and h21=I2/I1 when V2=0.
iv)Switch off the supply.
Case 2: Obtaining the values of h12 and h22 .
i)Apply Power to Output port and set Input port to Intermediate.
ii)Switch on the supply and click on "Simulate" button.
iii)Observe the result h12=V1/V2 and h22=I2/V2 when I1=0
iv)Switch off the supply.
ABCD parameter
Under 'Controls' choose Case1/Case2.
Case 1: Obtaining the values of A and C
i)Apply Power to Input port and set Output port to Intermediate.
ii)Switch on the supply and click on "Simulate" button.
iii)Observe the result A=V1/V2 and C=I1/V2 when I2=0.
iv)Switch off the supply.
Case 2: Obtaining the values of B and D
i)Apply Power to Input port and set Output port to Short.
ii)Switch on the supply and click on "Simulate" button.
iii)Observe the result B=V1/I2 and D=I1/I2 when V2=0
iv)Switch off the supply.
